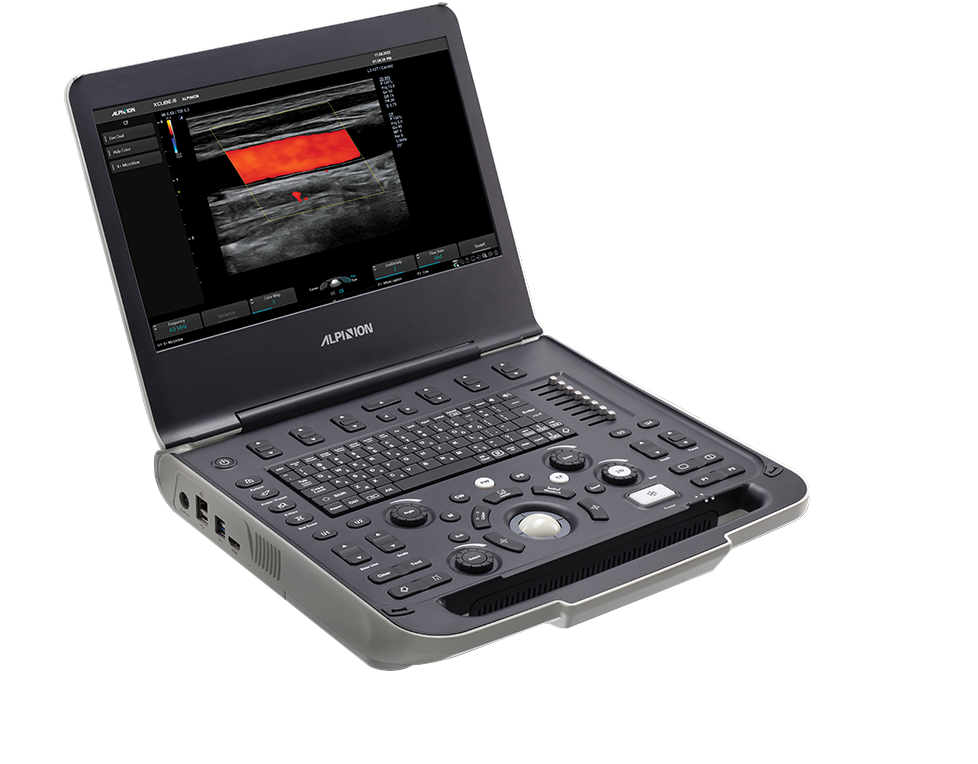

X-CUBE i8
Alpinion
Essential solution accessible to all XCUBE i8
X-CUBE i8, equipped with innovative X+ FIT beamforming technology and its large capacity data processing, delivers high-resolution images for reliable diagnosis across various applications. Experience best-in-class image quality with the X-CUBE i8.
X-CUBE i8, equipped with innovative X+ FIT
beamforming technology and its large capacity data processing, delivers high-resolution images for reliable diagnosis across various applications.
Experience best-in-class image quality with the X-CUBE i8.

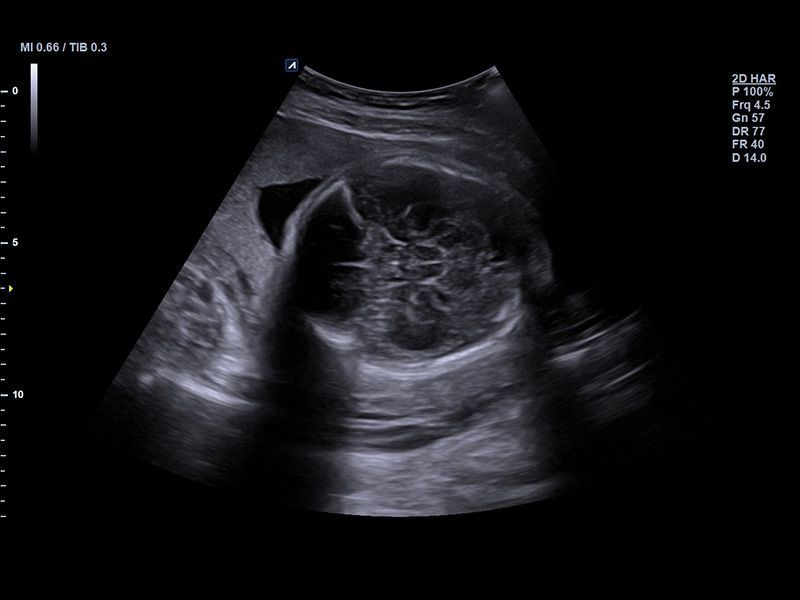

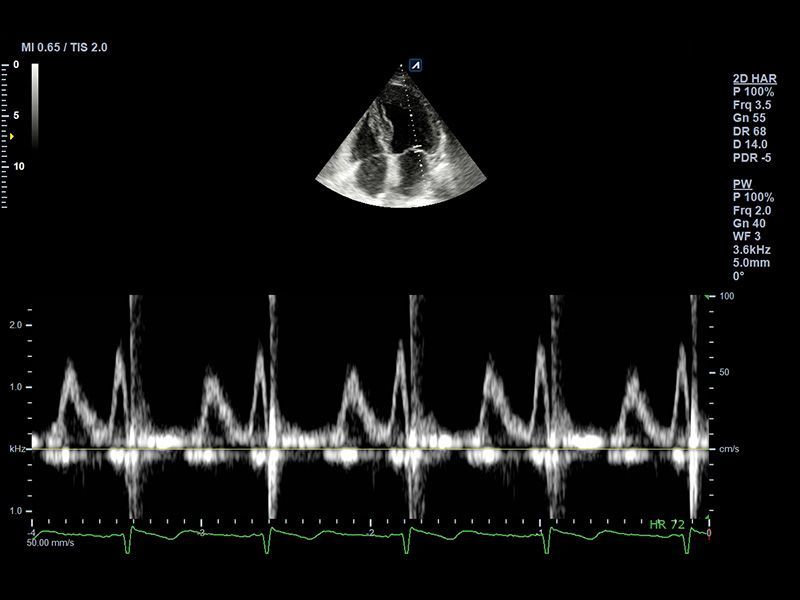

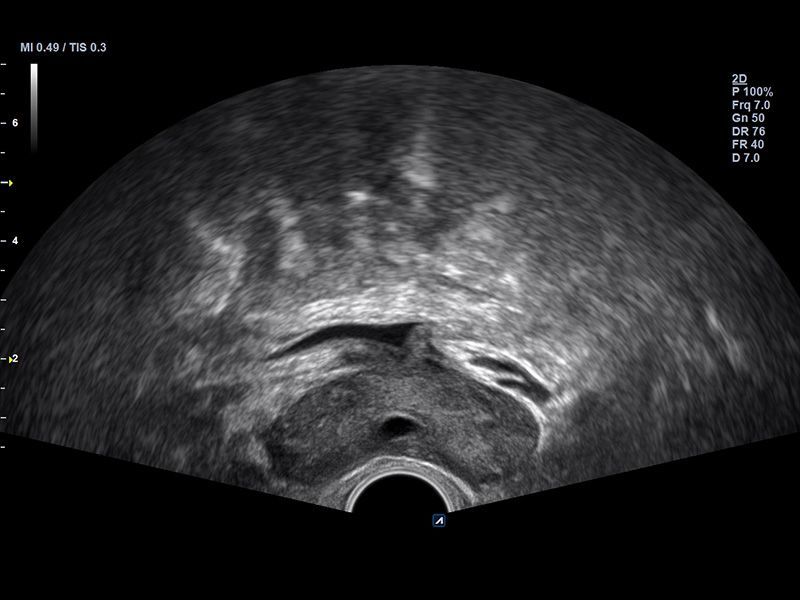

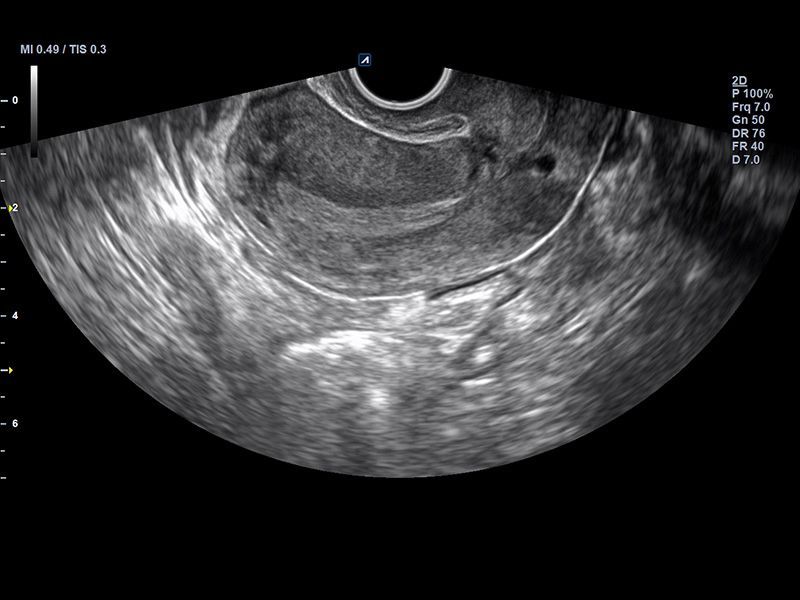

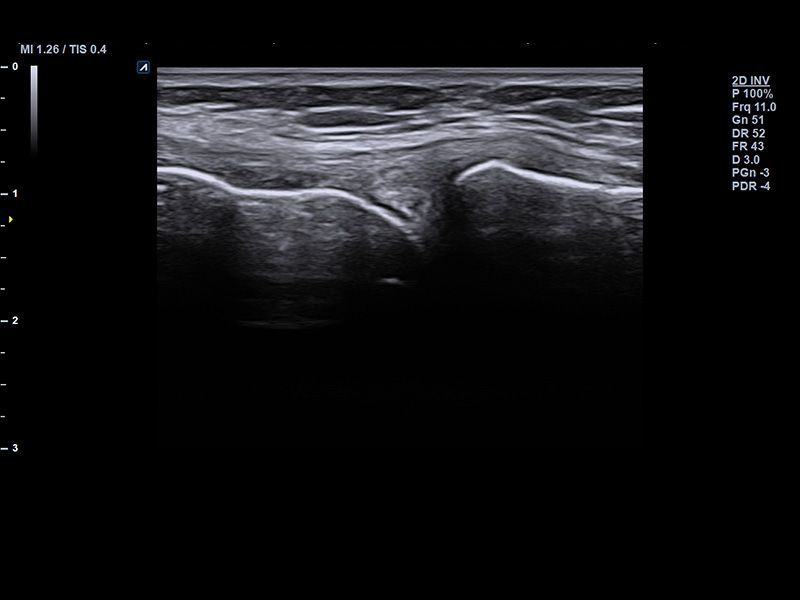

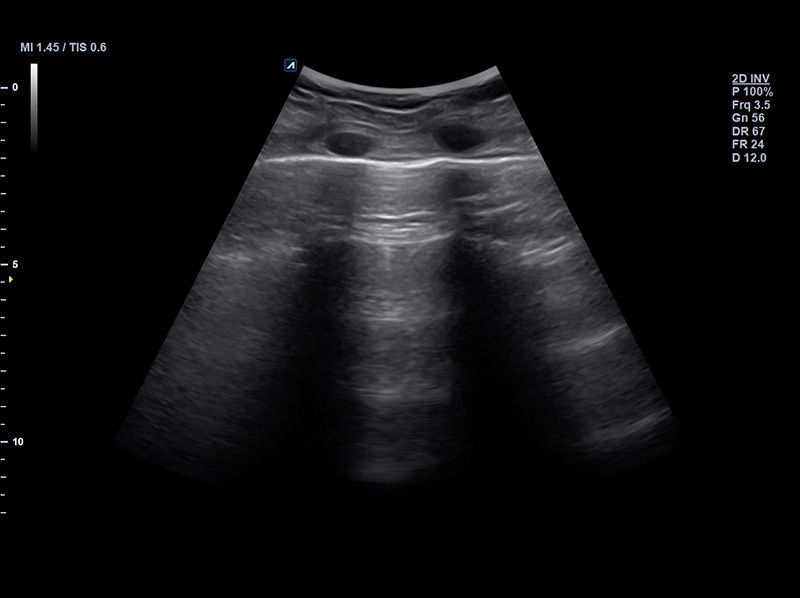

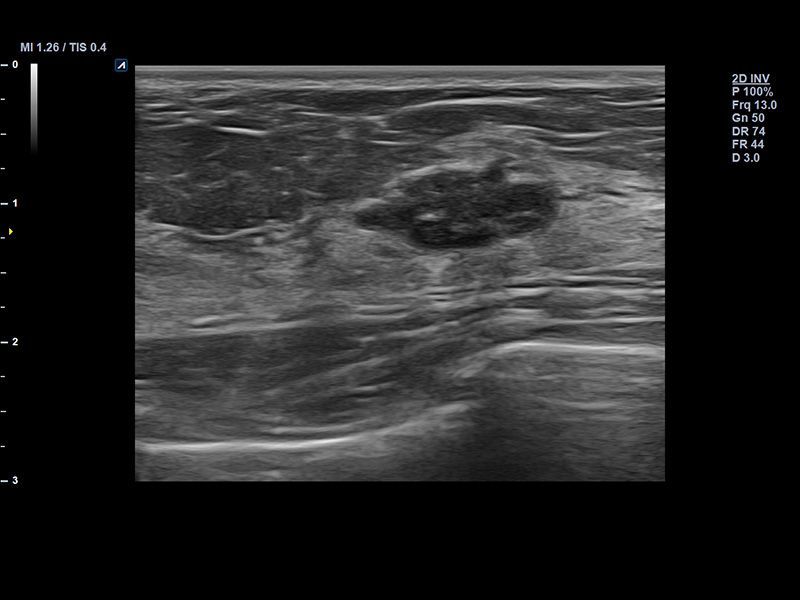

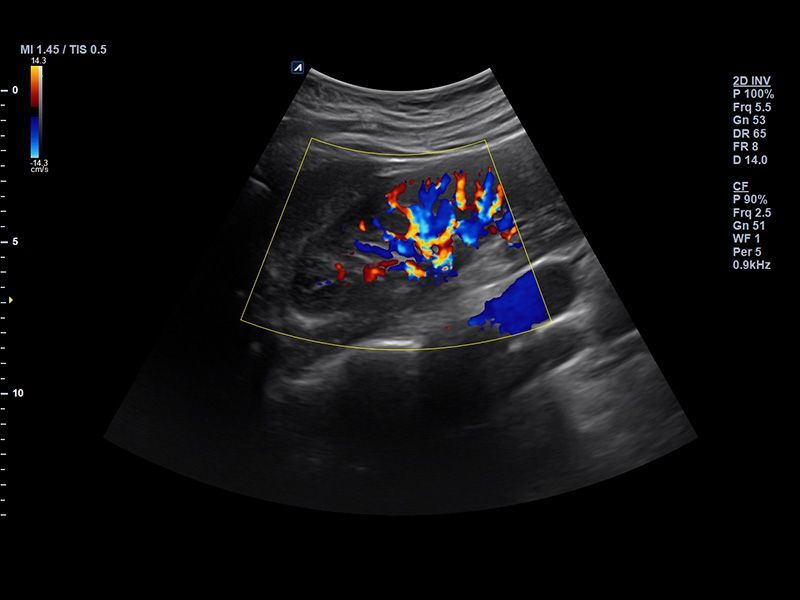

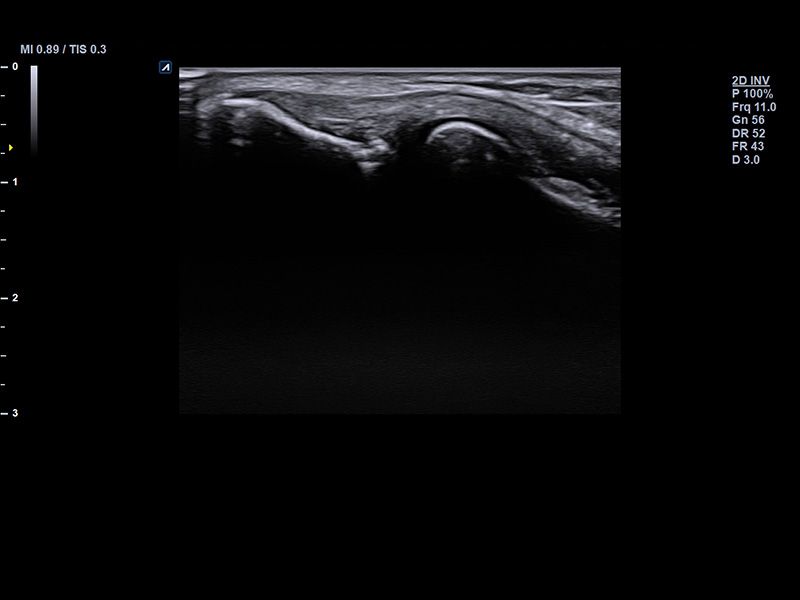

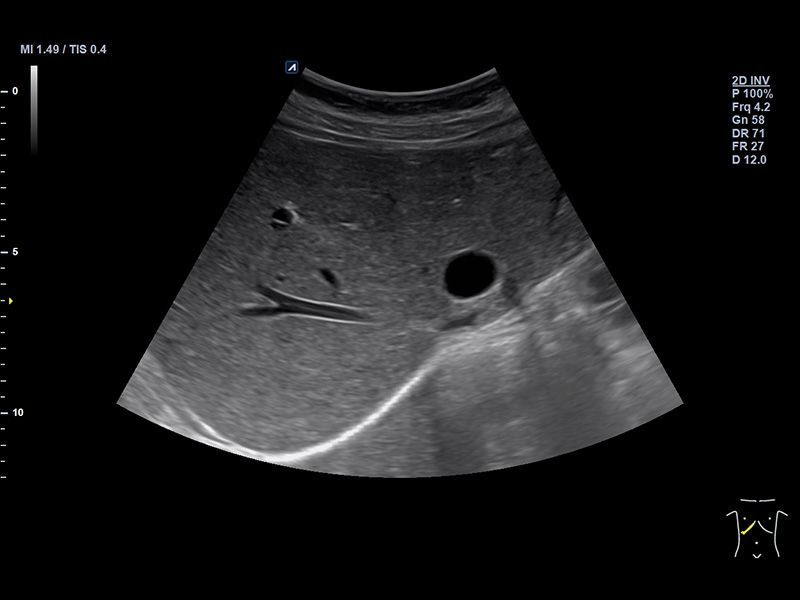

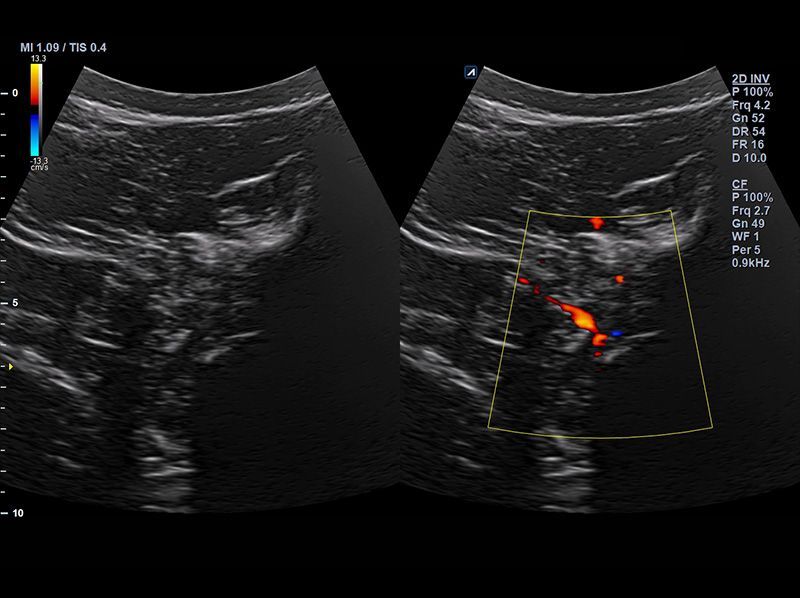

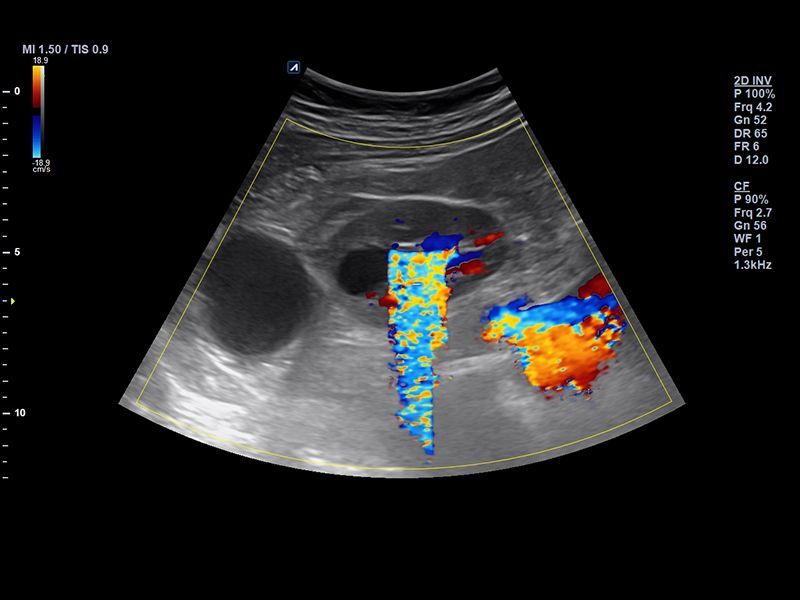

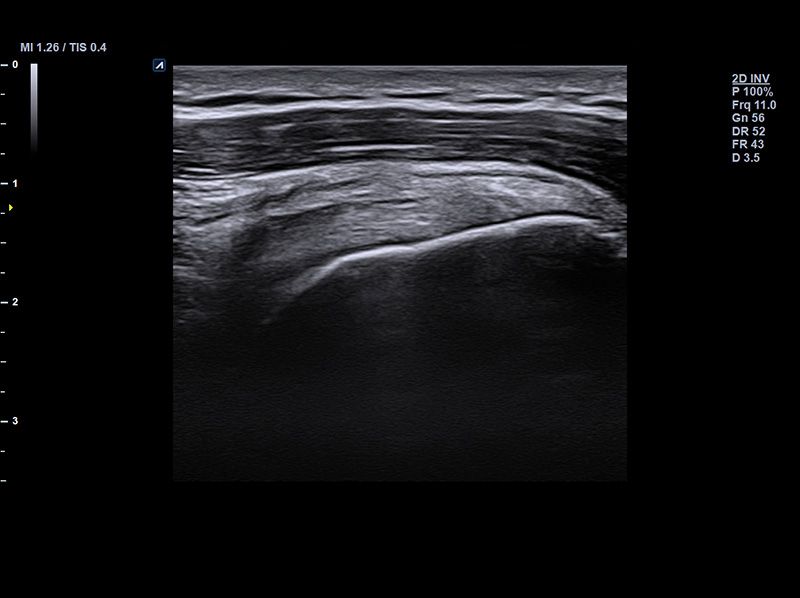

Image Gallery
Product Features

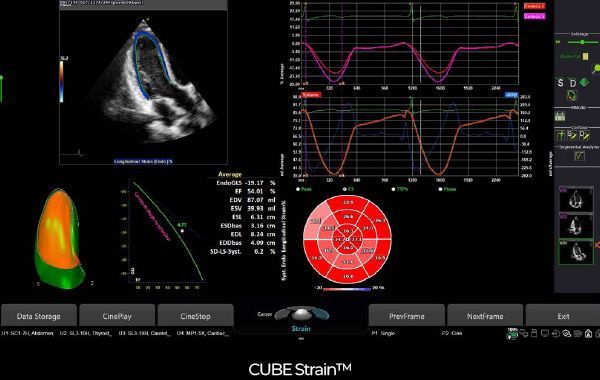

AutoEF & CUBE Strain™
An automated measurement tool for assessing left ventricle contractile function. It automatically analyzes end diastolic volume (EDV), end-systolic volume (ESV), and ejection fraction (EF), enhancing diagnostic accuracy and efficiency with X-CUBE i8.

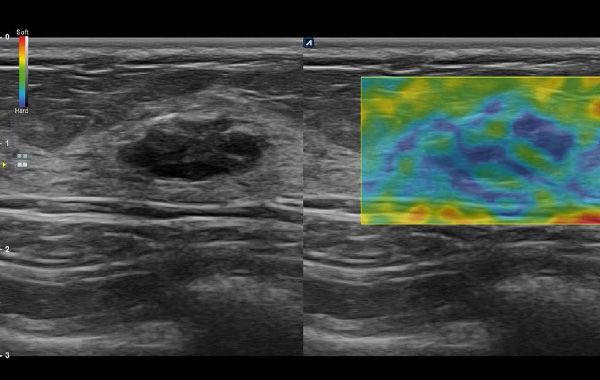

Displays relative elasticity of tissues against external pressure. Indication bar is marked with the scale of one to six for enhancing credibility of results.
- Needle visualization is crystal clear.
- Inversion harmonic imaging offers exceptional tissue differentiation.
- Live dual mode enables real-time image comparison on dual screens,
- simplifying pathology assessment.
- Fast 15-second boot-up from sleep mode.
Vascular | Clinical benefit
- High frame rate and sensitive Doppler imaging.
- Optimized work efficiency with automatic measurements.
- Seamless flow with cart for easy maneuvering.
- Full-screen mode magnifies small vessels.
Primary Care | Clinical benefit
- Effortlessly obtain ejection fraction and strain results.
- Boost efficiency with the auto sequencing feature.
- High portability with superb imaging.
- Excellent flexibility with 2 transducer connectors and 2 batteries.
- FIT technology delivers comprehensive clinical insights.
- Intelligent tools save time with high accuracy.
- Streamlined workflow through auto measurements and post-acquisition processing.
- CUBE Note enables easy transfer of fetus images from XC-i8 to a mobile device.
Disclaimer
Specifications
Design & Ergonomics
Product Specification
- 2 Transducer connectors (Second connector optional)
- 2 Built-in Batteries (Second battery optional)
- Sleep mode: Max. 100 hrs.
- Continuous scan: Max. 60 min.
- Fast System Boot-up
- From sleep mode: 15 sec. / From off mode: Max. 80 sec.
- 15.6 inch LCD monitor
- Monitor tilting up to 180°
- 6Kg (with 1 battery)
- Dimension: 385(W) x 370(D) x 62.5~353(H) mm
- 4 User Define Key
- Control Panel Cover (Optional)
Easy control cart
- Smooth and silent gas lift cylinder
- Easy adjustment of height: 848 ~ 998 mm
- 2 transducer holders, 1 Gel holder
- Weight: 22.5 kg
- Safety product locks
- Transducer cable management
- 4 swivel wheel
- Safety break locks
Carrying bag
- 3 transducer pouches included.
* The cart and carrying bag may be available for purchase separately.
