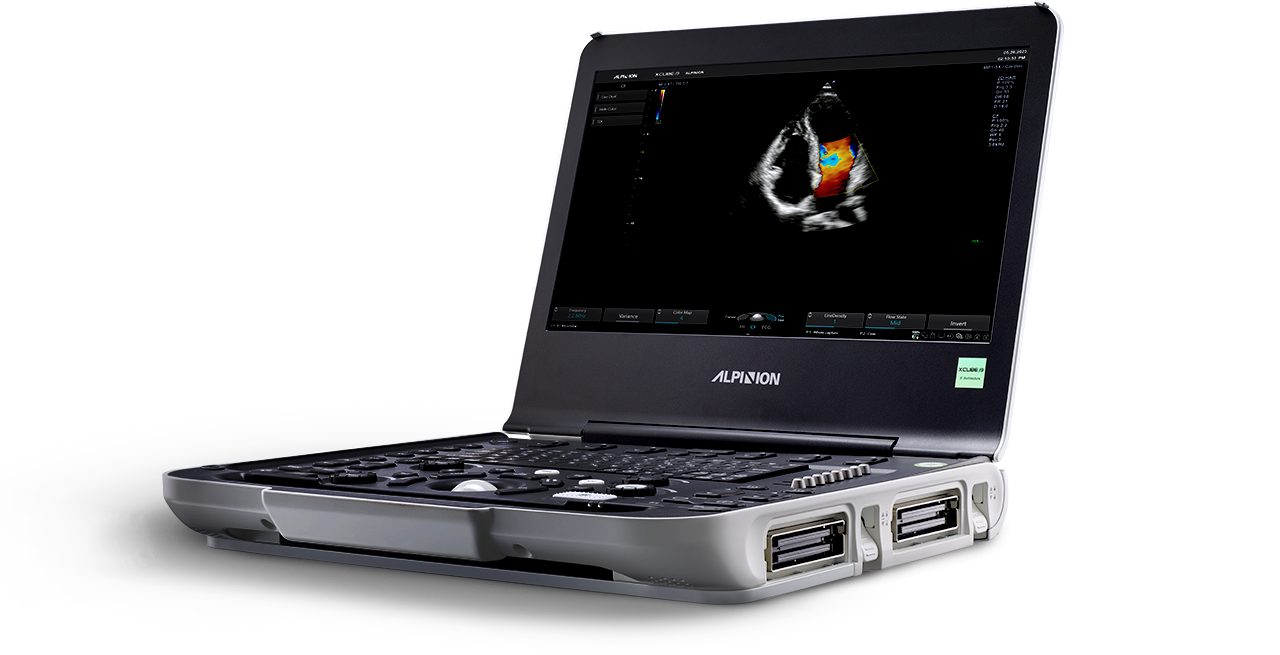

X-CUBE i9
Alpinion
Double up your efficiency
Experience a versatile ultrasound solution for the modern healthcare environment. The X-CUBE i9 offers optimum mobility, intuitive workflow, intelligent clinical applications, and efficient diagnostic solutions. Innovative healthcare professionals can achieve new heights in patient satisfaction with best-in-class imaging clarity and accuracy to confidently support each critical diagnosis with maximum viewing and data interpretations.
Image Gallery
Product Features
Long Lasting Batteries
Dual Batteries
2 built-in batteries
(Second battery optional)
Fast boot up
Long-lasting dual batteries
Standby mode: Max 100 hrs.
Continuous scan: Max 60 min.
Easy Control Cart
Easy adjustment of height: 848 ~ 998mm
Smooth and silent gas lift cylinder

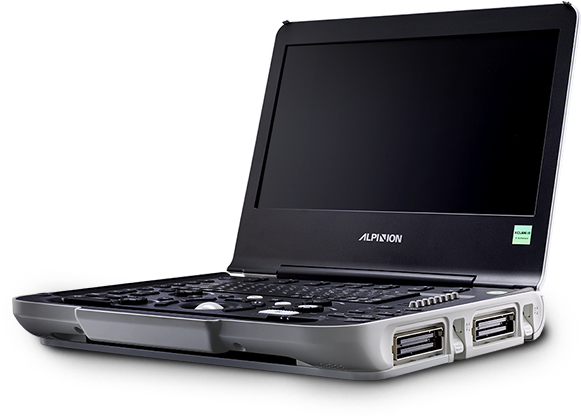

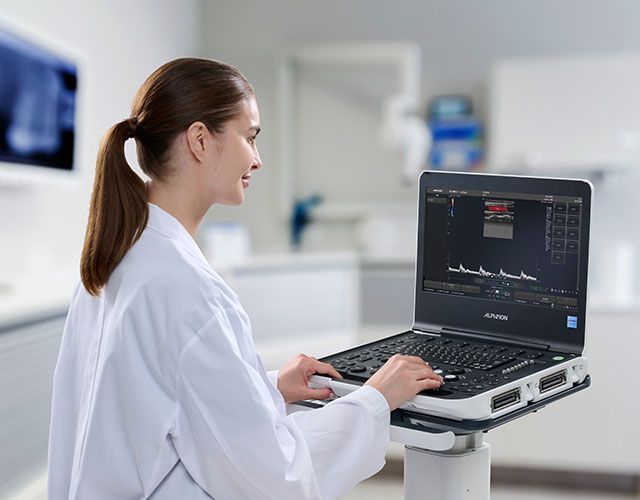

X-CUBE i9 frees you from time and space constraints and helps you focus more on your patients. Long-lasting batteries and dual transducers provide flexibility in the examination and the intelligent options help the fast examination and the guide function, which reduces the dependency on operators and maximizes efficiency.

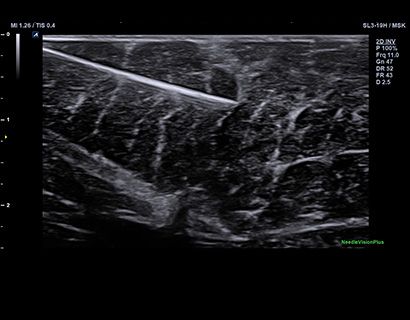

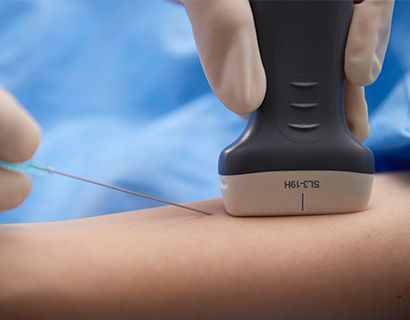

Needle Vision™
Using Beam Steering technology, this feature is useful in showing the shape and orientation of the needle.
The needle can be viewed more clearly by adjusting the beam angle in three steps.
High quality image

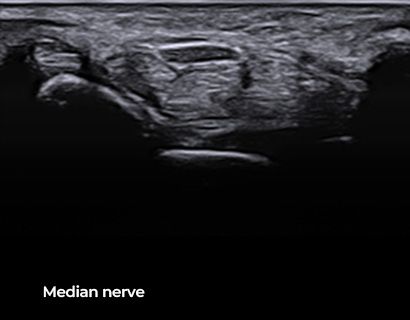

Ultra-high frequency linear L10-25H and wide bandwidth SL3-19H transducer, allow rich image quality from surface to muscle, nerve and, deeper area.

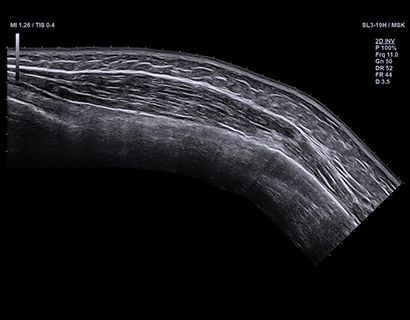

Panoramic Imaging offers a horizontal image with an extremely extended field of view.

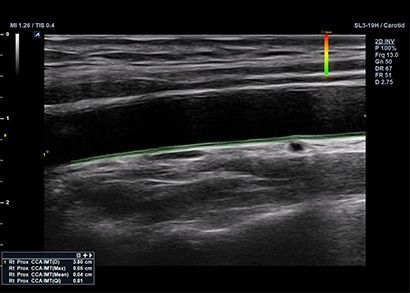

When the user draws a line in the area where the carotid intima media thickness is to be measured, the thickness will be measured automatically and displayed on the screen.

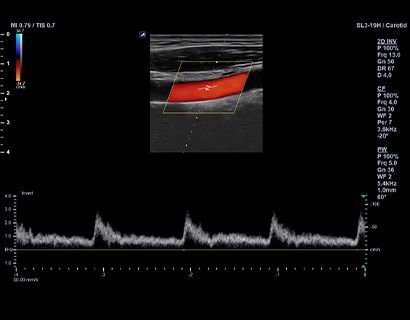

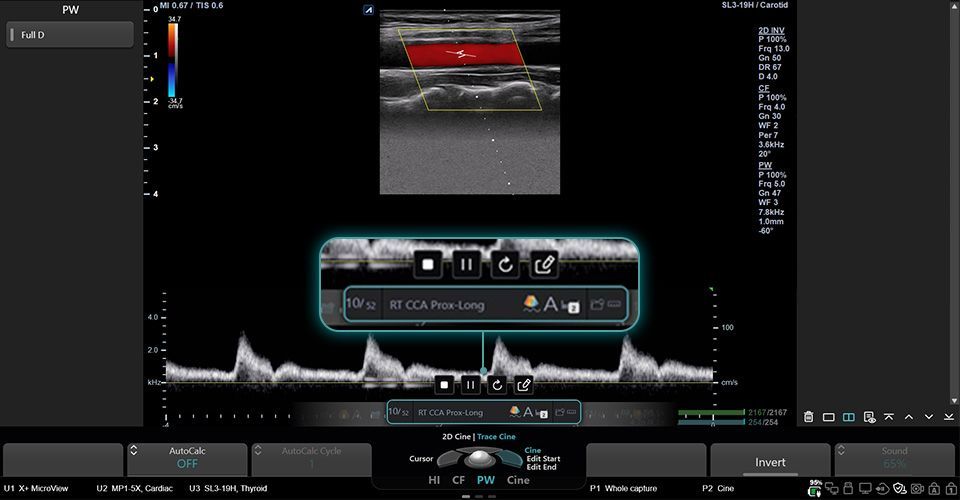

The direction and velocity of blood flow are displayed in real time. The excellent frame rate and image quality of the X-CUBE i9 help accurate and prompt exam.
Its durability is enhanced by using special material instead of rubber, which could be damaged by a needle and cracked during the scan. Thanks to the seamless mold, its easy to clean design may avoid cross contamination and infection.

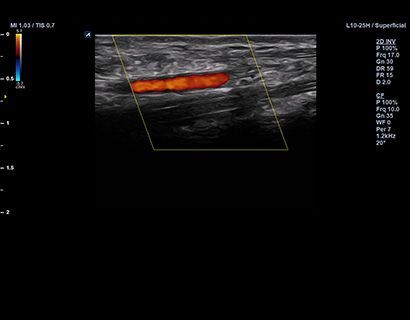

Ultra-high frequency linear transducer, L10-25H, allows superficial regions such as small saphenous vein and peroneal nerve to be displayed more clearly and accurately.

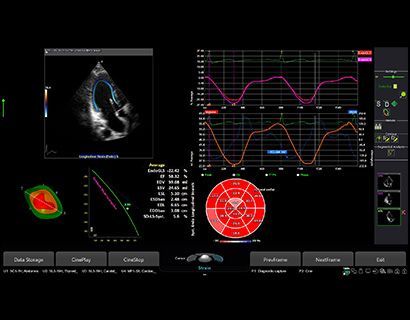

It is an automated measurement tool that evaluates the contractile function of the left ventricle. It automatically analyzes end diastolic volume(EDV), end-systolic volume(ESV), and ejection fraction(EF).

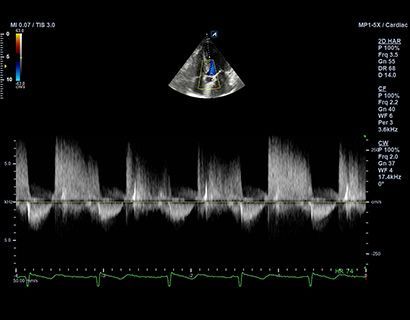

Continuous Wave Doppler (CWD) mode allows you to view the velocity and direction of a blood flow at a certain position. As you move the Doppler cursor, images on the Doppler line appear by time order.
Disclaimer
Coming soon
Specifications
Design & Ergonomics
Product Specification
- 2 Transducer connectors (Second connector optional)
- 2 Built-in Batteries (Second battery optional)
- Sleep mode: Max. 100 hrs.
- Continuous scan: Max. 60 min.
- Fast System Boot-up
- From sleep mode: 15 sec. / From off mode: 62 sec.
- 15.6 inch LCD monitor
- Monitor tilting up to 180°
- 6Kg (with 1 battery)
- Dimension: 385(W) x 370(D) x 62.5~353(H) mm
- 4 User Define Key
- Control Panel Cover (Optional)

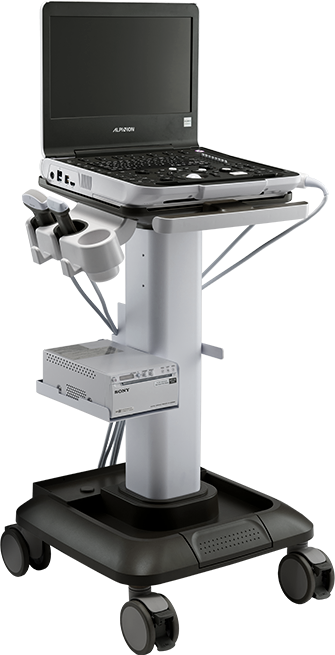

Easy control cart
- Smooth and silent gas lift cylinder
- Easy adjustment of height: 848 ~ 998 mm
- 2 transducer holders, 1 Gel holder
- Weight: 22.5 kg
- Safety product locks
- Transducer cable management
- 4 swivel wheel
- Safety break locks
Carrying bag
3 transducer pouches included. Carry Case
* The cart and carrying bag may be available for purchase separately.
